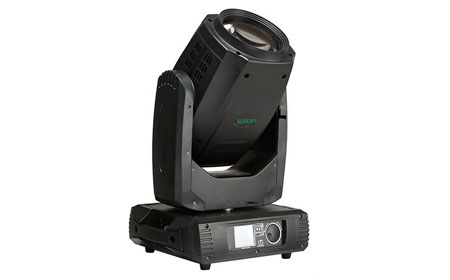

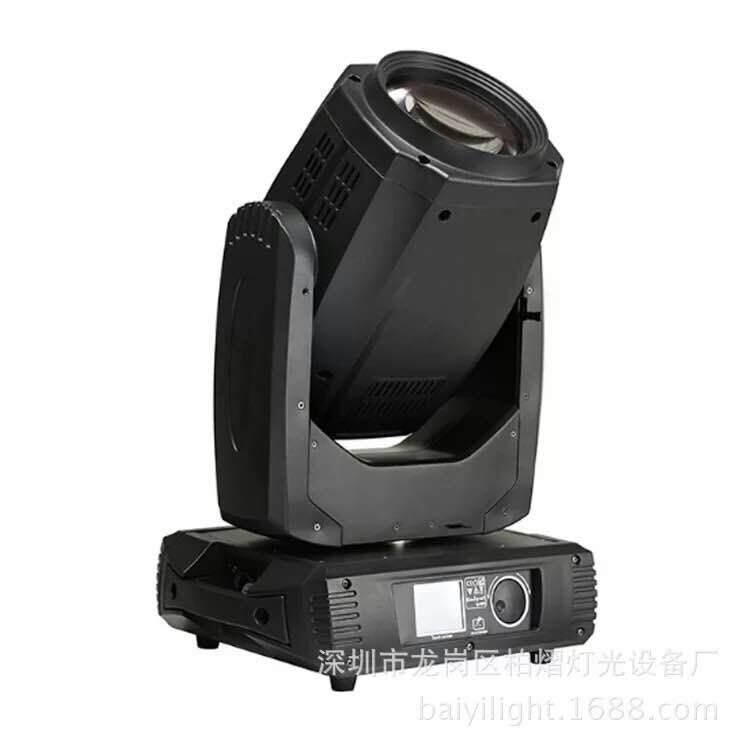

350W Moving head beam prism Light
Large Dacing stagelight equipment
350W pure beam prism king
Type: beam light / pattern light series
Model: SC-350C
Channel mode: 16/19;
Light source: yodn 350;
Voltage: 110-240v, 50 / 60hz;
Power: 470w;
Display: 2.8-inch touch screen, can be reversed 180 °;
Color plate: 14 color + white light;
Detail Info
350W pure beam prism king
Type: beam light / pattern light series
Model: SC-350C
Channel mode: 16/19;
Light source: yodn 350;
Voltage: 110-240v, 50 / 60hz;
Power: 470w;
Display: 2.8-inch touch screen, can be reversed 180 °;
Color plate: 14 color + white light;
Fixed pattern plate: 14 patterns + white light;

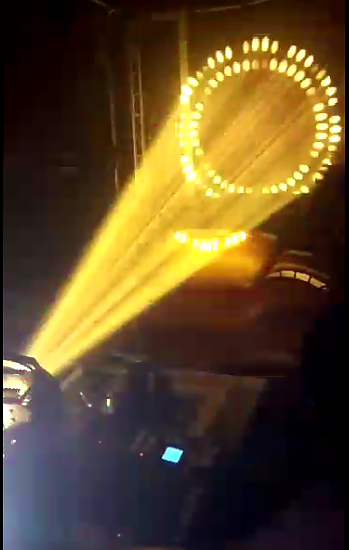

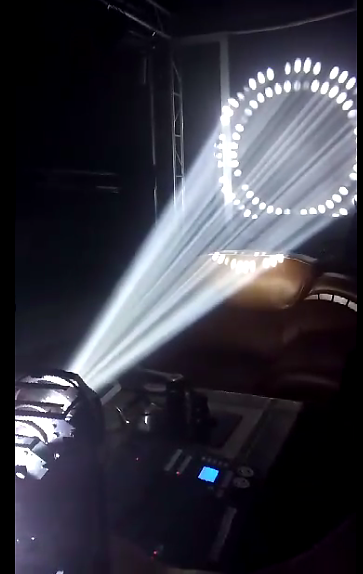

Prism: out of 11 prisms
Consisting of two rotating prism plates; prism plate 1: a 16 prism, a straight line 6 prism, 1 atomization;
Prism plate 2: 1 32 prism, 1 straight line 6 prism, 1 double prism (6 prism +12 prism)
Light angle: 4 ° or 6 °;
Dimming: 0-100% mechanical dimming, support for mechanical strobe and
Adjustable speed strobe effect, support strobe macro function, lens group optical system
The use of photoelectric reset system, when the malfunction occurs, can be automatically
Retrieve reset;
Positioning technology: the use of magnetic positioning system using magnetic devices instead of the traditional Hall positioning system, higher accuracy, reliable performance.
Level: 540 °, resolution 8 / 16bit;
Vertical: 270 °, resolution 8 / 16bit;
ip protection class: ip20;
Product Size: 409x592x350mm
Net weight: 18.3kg
Type: beam light / pattern light series
Model: SC-350C
Channel mode: 16/19;
Light source: yodn 350;
Voltage: 110-240v, 50 / 60hz;
Power: 470w;
Display: 2.8-inch touch screen, can be reversed 180 °;
Color plate: 14 color + white light;
Fixed pattern plate: 14 patterns + white light;
Prism: out of 11 prisms
Consisting of two rotating prism plates; prism plate 1: a 16 prism, a straight line 6 prism, 1 atomization;
Prism plate 2: 1 32 prism, 1 straight line 6 prism, 1 double prism (6 prism +12 prism)
Light angle: 4 ° or 6 °;
Dimming: 0-100% mechanical dimming, support for mechanical strobe and
Adjustable speed strobe effect, support strobe macro function, lens group optical system
The use of photoelectric reset system, when the malfunction occurs, can be automatically
Retrieve reset;
Positioning technology: the use of magnetic positioning system using magnetic devices instead of the traditional Hall positioning system, higher accuracy, reliable performance.
Level: 540 °, resolution 8 / 16bit;
Vertical: 270 °, resolution 8 / 16bit;
ip protection class: ip20;
Product Size: 409x592x350mm
Net weight: 18.3kg
