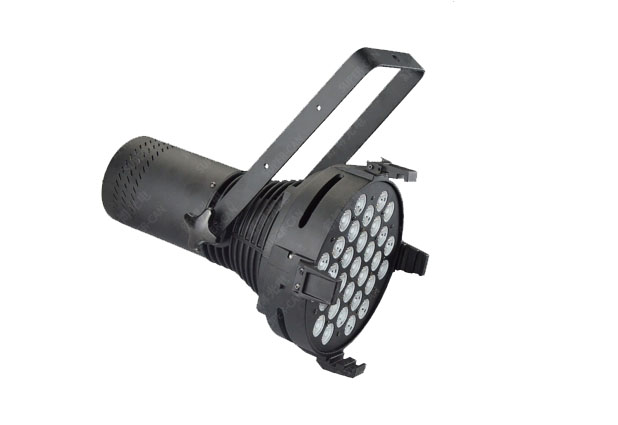

LED Car Light
Mainly applicable to the car show lights, fashion show lights
Technical Parameters;
Model: SC-0081
Auto Show Light 310W 7500K parameters
Rated voltage: AC90-240V
Rated frequency: 50 ~ 60HZ
Rated power: 400W PFC> 95% CE
Fuse: AC250V / 5A
Lamp beads: 31 10W Career CREE XM-L lamp beads
Detail Info
Technical Parameters;
Model: SC-0081
Auto Show Light 310W 7500K parameters
Rated voltage: AC90-240V
Rated frequency: 50 ~ 60HZ
Rated power: 400W PFC> 95% CE
Fuse: AC250V / 5A
Lamp beads: 31 10W Career CREE XM-L lamp beads
Drive current: 3000mA
Lamp color temperature: 7000 ~ 7500K
Life: 100,000 hours
Control protocol: International standard DMX-512 signal
Channel protocol: 2 DMX control channel mode, P1 mode, P2 mode selectable (1CH / 3CH)
Control mode: DMX-512 signal control mode, self-control mode, master-slave control mode, static mode, LED display
Dimming mode: DIMMER 0 is normal fast linear dimming, DIMMER 1-9 is soft non-linear dimming
Dimming effect: 0-100 linear dimming
Strobe speed: 1-20Hz
Optical lens: Cree frog eye optical lens
Beam angle: 8 ° / 15 ° / 25 ° / 40 ° / 60 °
Product surface treatment: die-casting aluminum, high temperature black paint
Lamp link: signal line IN / OUT, power cord POWER CONIN / OUT
Cooling mode: fan cooling mode
Temperature protection: 65 degrees
Working environment: indoors
Ambient temperature: minus 20 degrees to zero on the 40 degrees
Product Size: 430 * 268 * 268 (without hanger)
Product weight: 6.1KG
Model: SC-0081
Auto Show Light 310W 7500K parameters
Rated voltage: AC90-240V
Rated frequency: 50 ~ 60HZ
Rated power: 400W PFC> 95% CE
Fuse: AC250V / 5A
Lamp beads: 31 10W Career CREE XM-L lamp beads
Drive current: 3000mA
Lamp color temperature: 7000 ~ 7500K
Life: 100,000 hours
Control protocol: International standard DMX-512 signal
Channel protocol: 2 DMX control channel mode, P1 mode, P2 mode selectable (1CH / 3CH)
Control mode: DMX-512 signal control mode, self-control mode, master-slave control mode, static mode, LED display
Dimming mode: DIMMER 0 is normal fast linear dimming, DIMMER 1-9 is soft non-linear dimming
Dimming effect: 0-100 linear dimming
Strobe speed: 1-20Hz
Optical lens: Cree frog eye optical lens
Beam angle: 8 ° / 15 ° / 25 ° / 40 ° / 60 °
Product surface treatment: die-casting aluminum, high temperature black paint
Lamp link: signal line IN / OUT, power cord POWER CONIN / OUT
Cooling mode: fan cooling mode
Temperature protection: 65 degrees
Working environment: indoors
Ambient temperature: minus 20 degrees to zero on the 40 degrees
Product Size: 430 * 268 * 268 (without hanger)
Product weight: 6.1KG
